Expanding offshore capability through autonomy

Advanced AUV technologies built around proven Saab Sabertooth platforms.

High quality seismic acquisition. Delivered with operational precision.

MantaRay ®

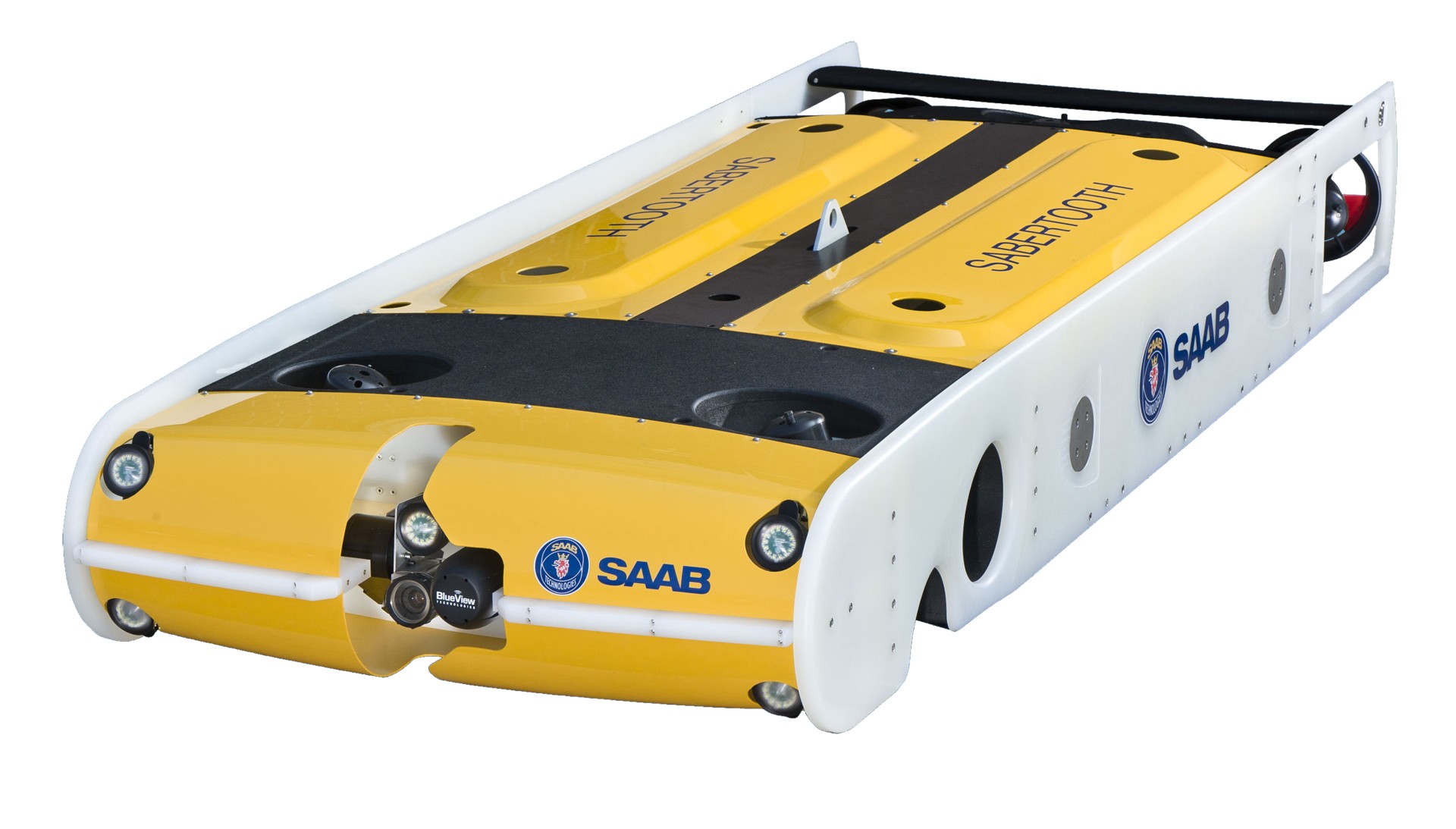

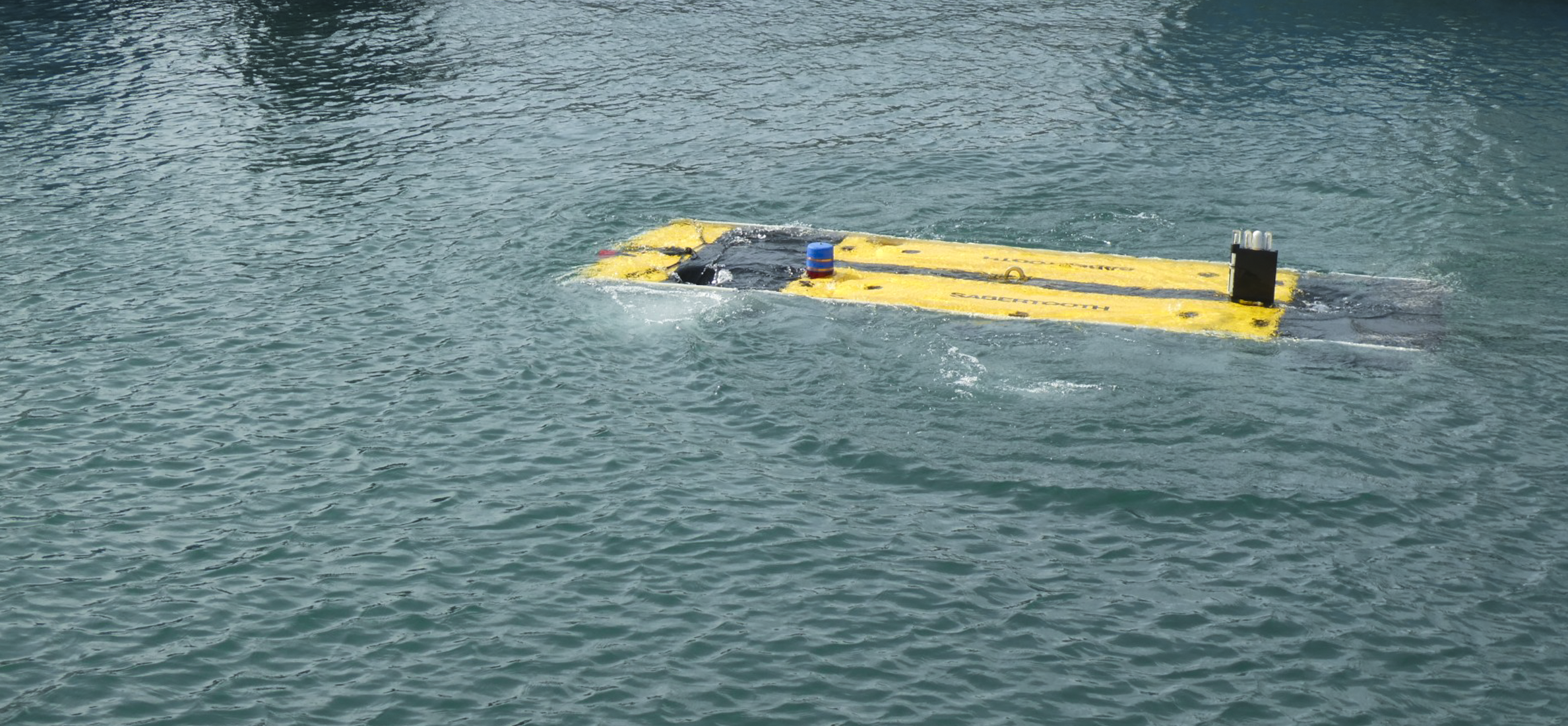

Sabertooth: hybrid performance for multiple applications

A hybrid AUV and ROV platform rated to 3,000 m, the Saab Sabertooth combines autonomous mission execution with manual precision intervention, giving you the flexibility to select the most appropriate mode for each task.

Wide operational range from 3 – 3,000 m

Navigates complex terrain with 6 degrees of freedom (DOF)

Flexible deployment from shore, vessels, or subsea docking station (SDS)

Resident duration: More than 6 months with docking station

The 360 degree hovering manoeuvrability allows it to operate close to infrastructure with precision, and the tether-free autonomous capability removes the operational constraints of conventional ROV systems.
Sabertooth supports inspection, surveillance and other survey operations across a wide range of subsea environments, from offshore energy infrastructure and subsea cables to offshore wind and defense applications. It can be deployed from shore, vessels, offshore installations or permanent resident systems.

Depth Range

3 – 3,000 m

Double hull configuration

Speed

4 kn

Double hull configuration

Degrees of freedom

6

Double hull configuration

Dimensions

4,000 × 1,350 × 670 mm

Double hull configuration

Options, Tools and Accessories

include (not limited to) Camera, Acoustic Navigation, Strobe, Telescopic Arm, Sabertooth Manipulator Skid, Doppler Velocity Log, Profiling Sonar, Bathymetric System, Low Light Camera

Double hull configuration

Weight in air

1,400 kg

Double hull configuration

MantaRay ®

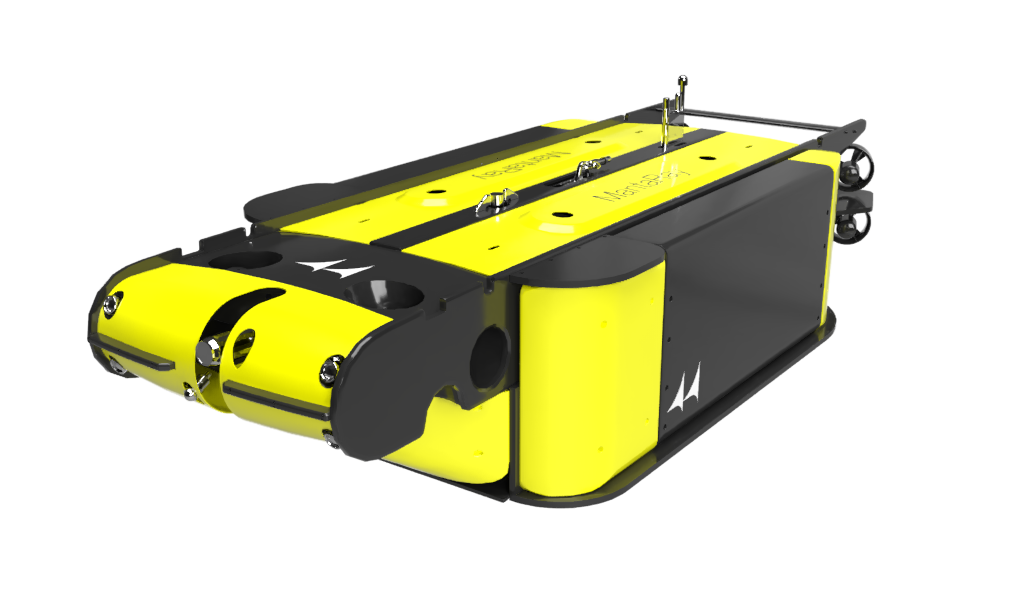

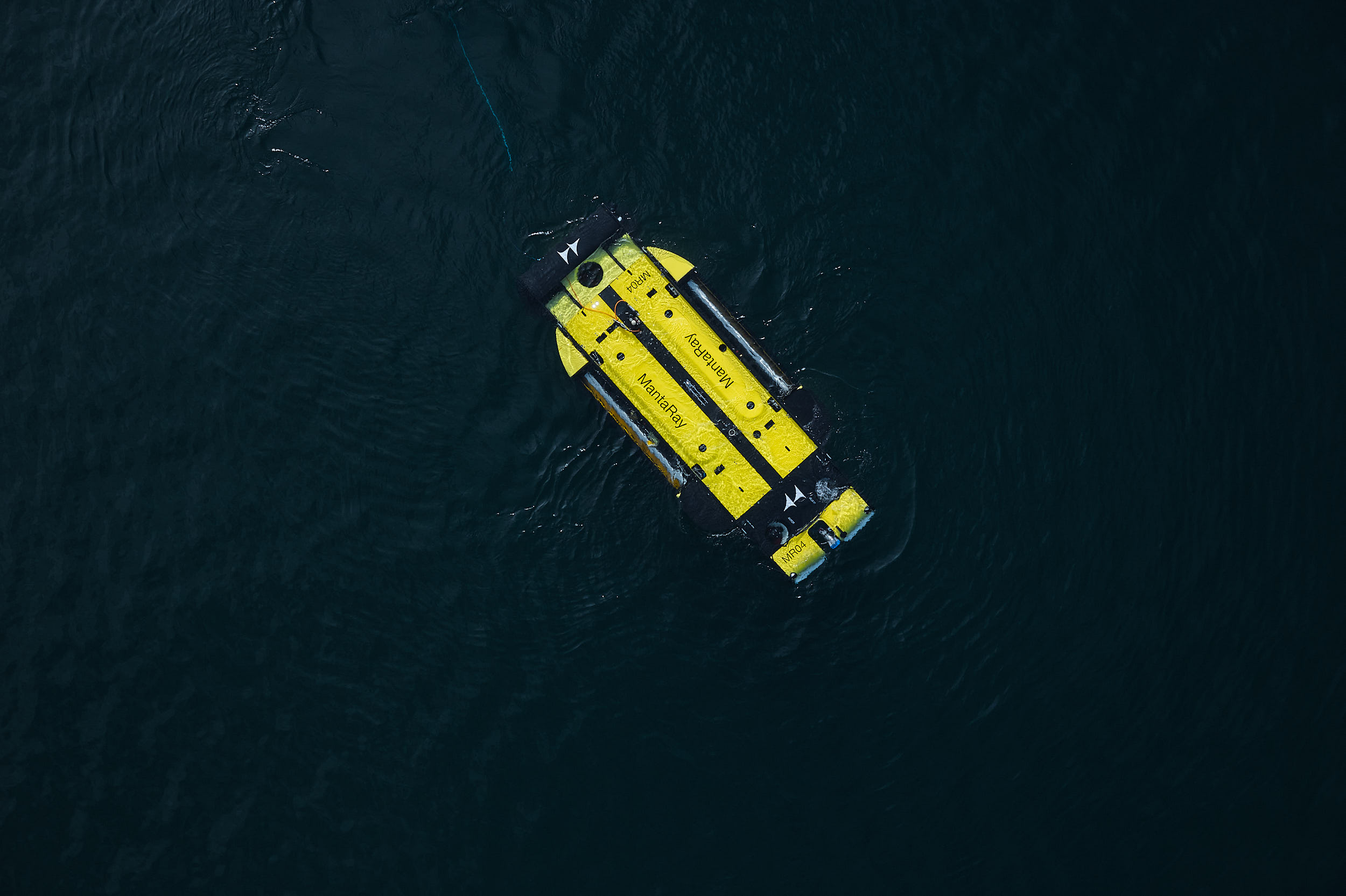

MantaRay: Bringing autonomy to ocean bottom seismic

With an operating water-depth range from 3 to 3,000 m, and a payload up to 40 MNodes, MantaRay is a versatile autonomous vehicle that reduces vessel use and costs while enabling faster, safer node deployment and retrieval.

Fast and accurate Ocean Bottom Node operation through autonomy

Wide operational range across the full water column, from 3 m to 3,000 m

Navigates complex terrain with 6 degrees of freedom (DOF)

Flexible deployment from shore, vessels, or subsea docking station (SDS)

Payload up to 40 nodes

Without a tether and fully autonomous, MantaRay can operate closer to infrastructure without the risk of entanglement and can work in shallower water than a conventional ROV. It can be deployed from a vessel, from shore or from a subsea docking station, removing the need for continuous vessel support during resident operations. Multiple vehicles can operate concurrently in the same area without the constraints of tether management, and autonomous navigation delivers consistent, repeatable positioning across node placement and retrieval.

Depth range

3 – 3,000 m

Double hull configuration

Speed

4.5 kn

Double hull configuration

Node capacity

≈40

Double hull configuration

Degrees of freedom

6

Double hull configuration

Dimensions

4,900 × 1,600 × 1,090 mm

Double hull configuration

Weight in air

4,000 kg

Double hull configuration

Navigation & Positioning

Obstacle Avoidance Sonar, USBL Positioning with Satellite update, Integrated Doppler Velocity Log, GPS and WiFi, Independent pinger, Iridium Sat con

Double hull configuration

Applications

From Ocean Bottom Node (OBN) to 3D Towed Streamer and Hybrid Acquisition, we deliver seismic solutions designed around operational realities, subsurface complexity, and project objectives.

Button Text

Offshore Wind

—

Foundation inspection

—

Cable surveys

—

Scour monitoring

—

Operations support

Oil & Gas

—

Pipeline inspection

—

Riser monitoring

—

Wellhead surveys

—

Subsea infrastructure IMR

Seismic & OBN Integration

—

Node deployment and retrieval

—

Seabed positioning

—

Integrated survey support

Infrastructure & CCS

—

Cable route surveys

—

Interconnector inspection

—

Carbon storage monitoring

Defense

—

Subsea inspection

—

Surveillance

—

Subsea monitoring

Solution built around your survey requirements

Our AUV platforms are sensor agnostic, configurable to the specific data types and operational demands of each project. Whether the requirement is inspection, survey or infrastructure monitoring, we match the right platform, sensor package and deployment model to perform the tasks you need.

Button Text

We are a dedicated team committed to delivering exceptional solutions that empower our clients to achieve their goals. Our passion for innovation and excellence drives us to continuously improve and adapt in a rapidly changing world.

Get in touch

PxGeo is a subsea solutions company that combines innovative proprietary technology with decades of operational experience across every major basins to deliver seismic and autonomous subsea solutions efficiently, reliably and on time.
